We are pleased to provide you with the following quotation for your consideration:
很高兴有机会为贵司提供产品服务，报价如下供参考：
| Number 序号 | Model Number 型号代码 | Equipment Name 商品名称 | QTY 数量 | Amount/USD 总额/美元 | Remarks 备注 |
|---|---|---|---|---|---|
| 1 | SFU600-5L | SFU600-5L试验型设备 | 1 | 410,000.00 | 设备详情，请见技术方案 |
| Terms of delivery 交货条款 | Manufacturing factory acceptance制造工厂验收 |
| Time of delivery 交货时间 | |
| Terms of payment 付款条件 | 40% advance payment for equipment, 50% to be paid after passing inspection before delivery, 10% warranty deposit to be paid in full after installation and commissioning.预付设备款 40%，提货验收合格后再付 50%， 10%安装调试后支付。 |
| Validity 报价有效期 | Quotation Valid to31th June 2025 |

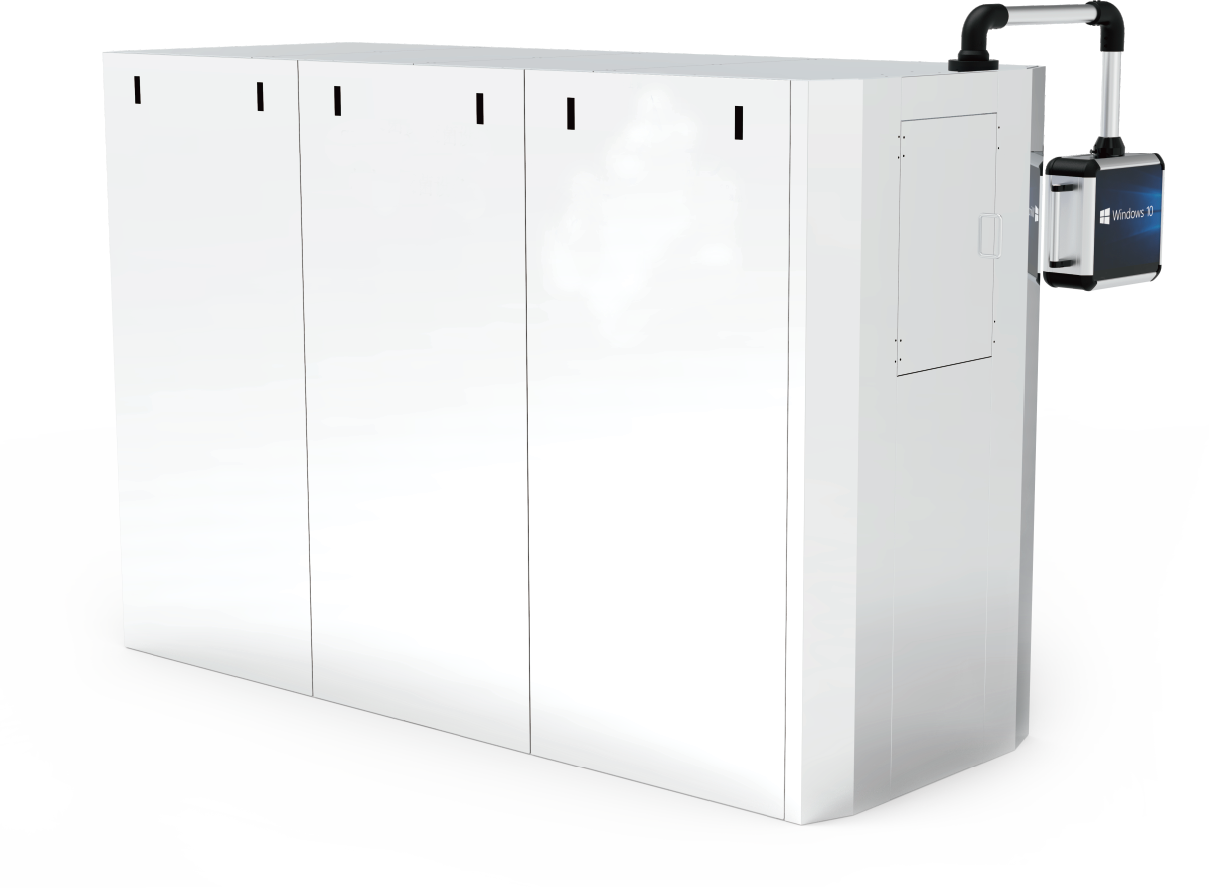

| 型号/Model | SFU600-5L |
| 型式/Type | 立式/Vertical |
| 高压舱容积/Hyperbaric chamber volume | 5L |
| 高压舱有效容积//Effective volume of hyperbaric chamber | ≥5L |
| 高压舱内直径/High pressure chamber diameter | φ120mm×660mm |
| 最大工作压力/Max work pressure | 600Mpa |
| 主机装备尺寸/Host equipment size | 2400*1400*2000mm |
| 设备重量/Equipment weight | 3T |
| 高压源组数/Number of high voltage source groups | 1组/1group |
| 总装机容量/Total installed capacity | 6KW |
| 操作系统/Control System | 自动控制/Automatic control |
| 升压时间/Boost time | 约5分钟/About 5 minutes |
| 补压方式/Pressure replenishment method | 自动补压/Automatic pressure replenishment |
| 泄压方式/Pressure relief method | 自动泄压/Automatic pressure relief |
| 安全机制/Safety Mechanism | 智能防护/Smart Protection |
